  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SenRing
  • Model Number: SNM022A-06
  • Wires: 6
  • OD: 22mm
  • length: 19.5mm
  • current: 2A

Packaging & Delivery

Packaging Details: standard carton box
SNM022A-06

Body Diameter: 22.00mm , Length: 19.5mm

6 circuits version
Request A Quote
SNM022A-06 Installation Guide
The SNM022A-06, with 6 wires and compact 22.00mm body diameter, which we call our “mini”, is our newest design and smallest physical package.uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

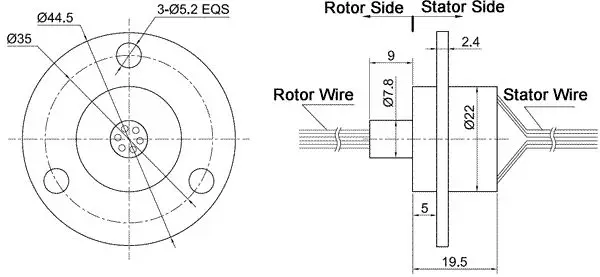

SNM022A-06 Dimensions



SNM022A-06 Specifications

  • Contact Material

    Gold alloy brush,Gold plated rings

  • Current Rating

    2A, per ring, maximum

  • Number of Circuits

    6

  • Operating Speed

    250 rpm* continuous

  • Housing Material

    Engineering Plastics

  • Lead Wire

    UL Teflon® Awg28,color-coded, silver-plated

  • Lead Lengths

    250mm

  • Voltage

    210 VDC / 240 VAC

  • Operating Temp.

    -40°C to 80°C

  • Torque

    Approx. ≤0.3 g·m (for reference )

  • Dielectric Strength

    ≥600V@50Hz between each circuit

  • Insulation Resistance

    600MΩ@ 300VDC

  • Noise

    20 milliohms maximum tested @ 6 VDC, 40 milliamps when running @ 5 - 15 rpm

  • Resistance to pull

    Radial 2KG,Axial 0.5KG

  • Protection

    IP51

*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

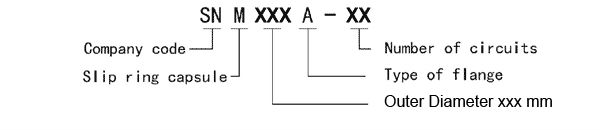

Part Number Introduction


Description

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure.The SNM022A-06, with 6 wires and compact 22.00mm body diameter, which we call our “mini”, is our newest design and smallest physical package.uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. SNM022A-06 is Compatible with data bus protocols,Transfers analog and digital signals.
Features
  • 6 circuits
  • Compact size: 22.00mm(diamter)*19.5mm(L)
  • Gold-on-gold contacts
  • Compatible with data bus protocols
  • Transfers analog and digital signals
  • Speeds up to 250 rpm continuous
  • Precision ball bearings meet or exceed life requirements for most commercial applications
Benefits
  • Smooth running
  • Low torque
  • Compact dimemsions
  • Quick shippments
Lead Wire Color Code

Circuit No.123455
ColorBLKBROWNREDORGYELGREEN

Type Application

CCTV pan / tilt camera mountsElectrical test equipment
Manufacturing and process control equipmentMedical equipment
Roboticsrotary index tables
Miniature cable reelsLaboratory equipment
