Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SenRing
  • Model Number: SNH038
  • Hole Size(mm): 38.1mm
  • Outer Dia(mm): 99mm
  • Circuits: 2-56
  • Volt AC/DC(V): 600Vac/240Vdc
  • Current(A): 2A/5A/10A/20A
  • Speed(rpm): 600RPM

Packaging & Delivery

Packaging Details: Standard carton Package
 SNH038 series are standard through hole slip rings ,through hole 38.1mm(suitable for<=38.1mm),OD99mm,intergated structure with plastic & AL alloy, support signals(2A),power 10A,circutis no.*10A, voltage250VAC/VDC


Contact materials:precious metal +gold plating which ensures low torque,stable rotation,long life,low electrical noise and good transmiting performance.Compared to peer products,with advantages of higher rotation accuracy,more reliable performace and longer life

Typical application:automation equipment,working turntable,camera platform,robotics

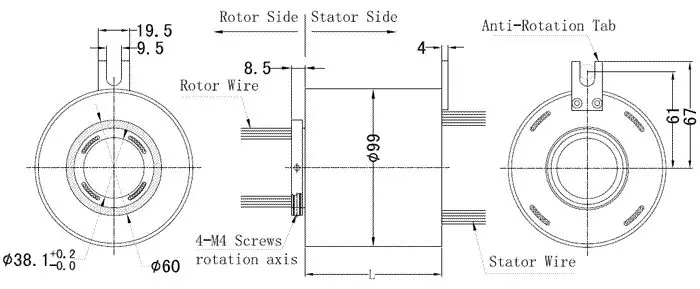

SNH038(Standard) Dimensions

Download Drawings
*Please note: Outer Diameter should be 120mm when circuits > 48

SNH038 Specifications(Standard)

  • Contact Material

    Precious metal brush,Silver plated rings

  • Current Rating

    2A,5A,10A,20A/per circuit

  • Number of Circuits

    2, 3,  4,  6,  12,  18,  24,  30,  36,  48,  56

  • Operating Speed

    400 rpm* continuous

  • Lead Wire

    UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)

  • Voltage

    600 VAC

  • Operating Temp.

    -40°C to 80°C

  • Working Humidity

    60%RH

  • Torque

    Approx. ≤8.95 g·m (for reference )

  • Dielectric Strength

    ≥1000V@50Hz between each circuit

  • Insulation Resistance

    1000MΩ@ 600VDC

  • Noise

    Less than 20 mΩ @ 6 VDC, 50 mA, 5 rpm

  • Housing Material

    Aluminum Alloy

  • Protection

    IP54

Part Number Introduction

*Note: in below table,X- specifies current capacity of power circuits. 10, 15 and 20 amp available. See ordering instructions for details




Lead Wire Color Code
Circuit No.123455
ColorBLKREDYELGRNBLUWIT
Circuit No.789101112
ColorBRNORGGRAYCLARWIT-REDWIT-RED
12 circuits/per group, groups with tags
Type Application
Industrial machineryFilling equipment
Exhibit / display equipmentMedical equipment
machining centerserotary index tables
Mechanical armSurgery lamp
heavy equipment turrets or cable reelsRevolving door
Packaging machineCoiling machine
test equipmentpackaging machines
